KF040M-015-KN-PH - Datasheet
MBA
Category Information

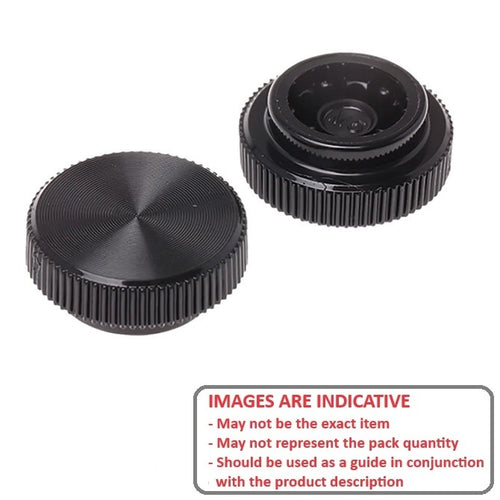

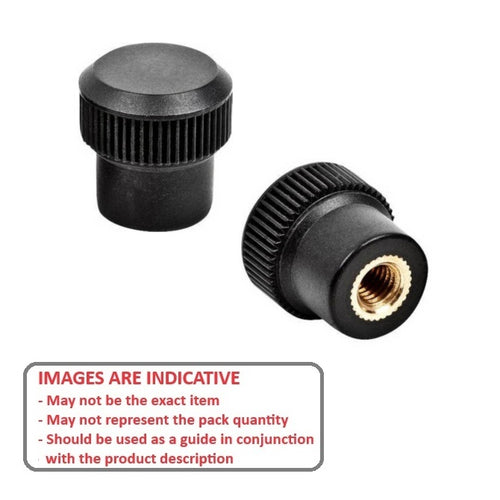

Knobs - Knurled - Female - PhenolicPhenolic Female Knurled Knobs. Plastic (high grade gloss black phenolic) with Steel Insert.
Product Data
- Thread Size : M4 (4x0.7mm)

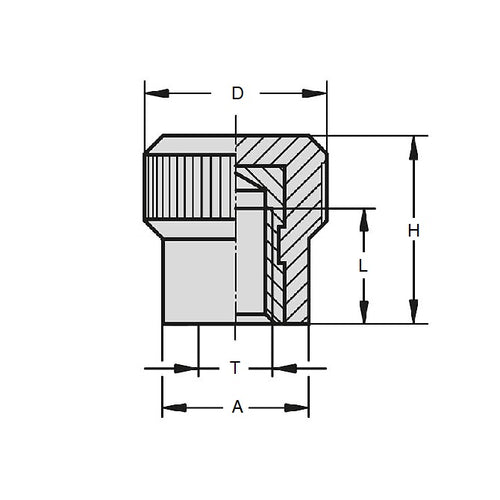

- Head Diameter (A)
15.00
mm
(Equiv. 0.591 in.) - Screw Length
10.0
mm
(Equiv. 0.394 in.) - Knob Length (B) 15.5 mm
- Hub Thickness (C) 12.0 mm
- Material Phenolic
Product Compliance and Data
Additional Resources
Cross References
- KPB-1012
- KPB1012
