KF040M-012-KN-PH - Datasheet

MBA

Category Information

Knobs - Knurled - Female - Phenolic

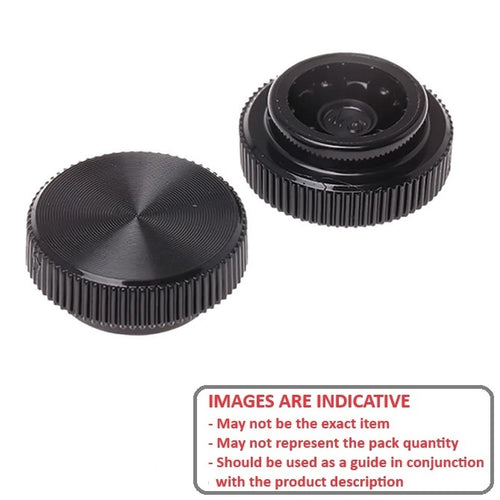

Phenolic Female Knurled Knobs. Plastic (high grade gloss black phenolic) with Steel Insert.

    Product Data

    • Thread Size : M4 (4x0.7mm)
    • Head Diameter (A) 12.00 mm
    • Screw Length 10.0 mm
    • Knob Length (B) 13.5 mm
    • Hub Thickness (C) 6.0 mm
    • Material Phenolic
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • Reid Tool® KPB-1011
    • KPB1011
    View full details

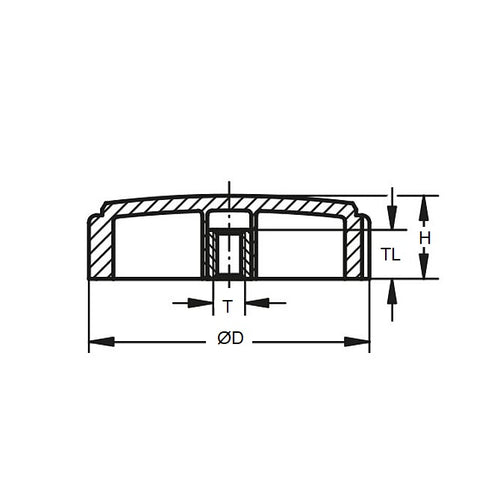

    KF040M-012-KN-PHDiagramKF040M-012-KN-PHImage
