SPANC-040M-035 - Datasheet

MBA

Category Information

Spring Anchors - Steel

Steel Spring Anchors. C-12114 steel selection. Black oxide finish.

  • An economical way to secure the ends of extension springs, and provide easy adjustment.

Product Data

  • Thread : M4 (4x0.7mm)

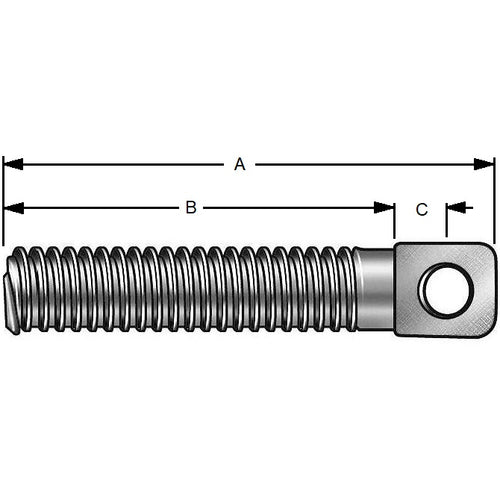

  • Overall Length (A) 35.00 mm
  • Thread Length (B) 26.50 mm
  • Thread to Centre Eye (C) 1.75 mm
  • Hole Size 1.50 mm
  • Material Trivalent Chromate S45C Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-AIPO4-35
  • CAIPO435
View full details

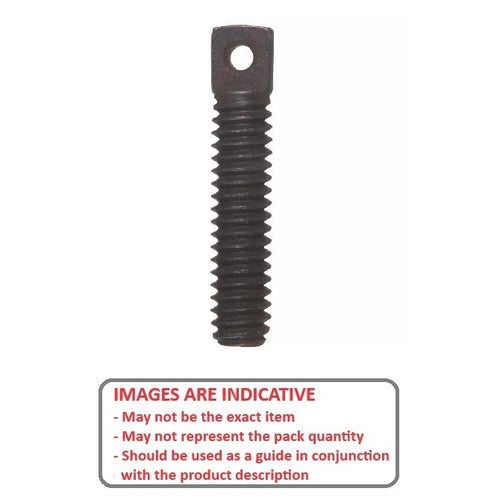

SPANC-040M-035DiagramSPANC-040M-035Image
