SPANC-040M-025 - Datasheet

MBA

Category Information

Spring Anchors - Steel

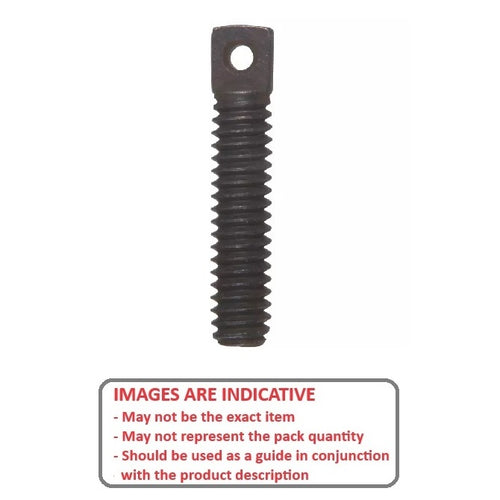

Steel Spring Anchors. An economical way to secure the ends of extension springs, and provide easy adjustment.

  • C-12114 Steel with Black Oxide Finsh

Product Data

  • Thread : M4 (4x0.7mm)

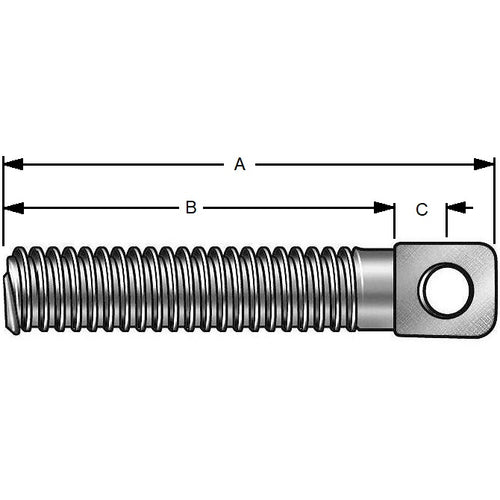

  • Overall Length (A) 25.00 mm
    (Equiv. 0.984 in.)
  • Thread Length (B) 16.50 mm
    (Equiv. 0.65 in.)
  • Thread to Centre Eye (C) 1.75 mm
  • Hole Size 1.50 mm
  • Material Trivalent Chromate S45C Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-AIPO4-25
  • CAIPO425
