NT040M-BX-S4 - Datasheet
MBA
Category Information
Nuts - Hexagonal - Binx - Stainless Steel 304Stainless Steel 304 Binx Hexagonal Nuts. Manufactured from A2 302/304 grade stainless steel.
- An expanded range may be available on special order. Please enquire.

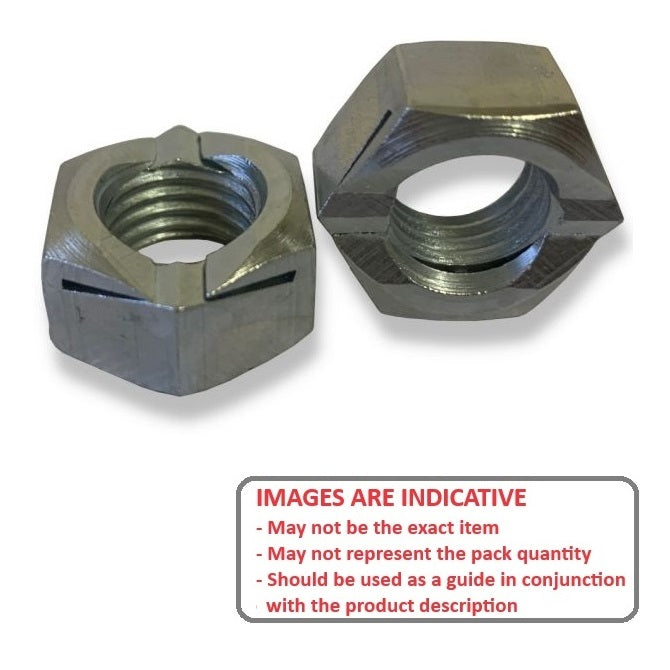

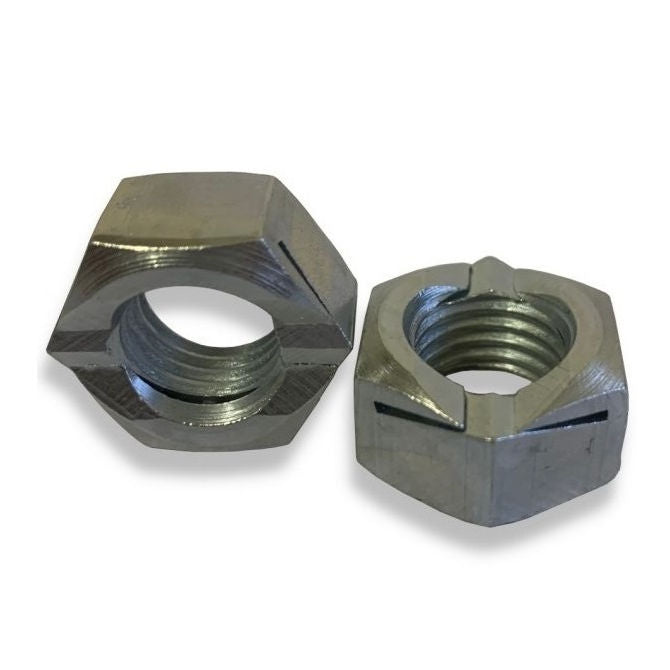

- The standard Binx's entire locking action is contained within the nut body which is no thicker than a standard full nut.
- The ingenious design incorporates two opposing cantilever type springs which lock onto the bolt with inward and downward pressure.
- May be removed and placed repeatedly with minimum thread wear.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : M4 (4x0.7mm)

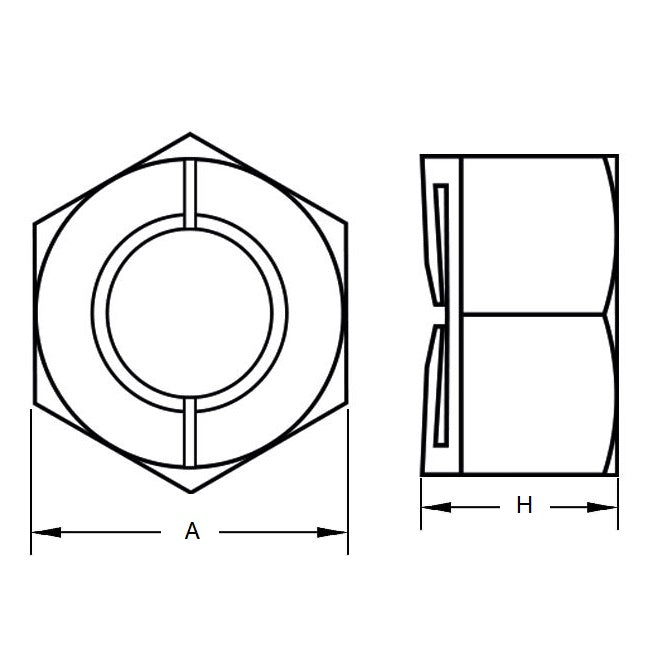

- Thickness (H)
3.2
mm
+ 0.000 / - 0.005
(Equiv. 0.126 in.) - Across Flats (A/F)
7.00
mm
(Equiv. 0.276 in.) - Type Binx
- Pitch 0.700mm mm
- Threads Per Inch 36.29 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- BINXM4
- BINX-M4
