SC040M-008-C-SKT-A - Datasheet
MBA
Category Information

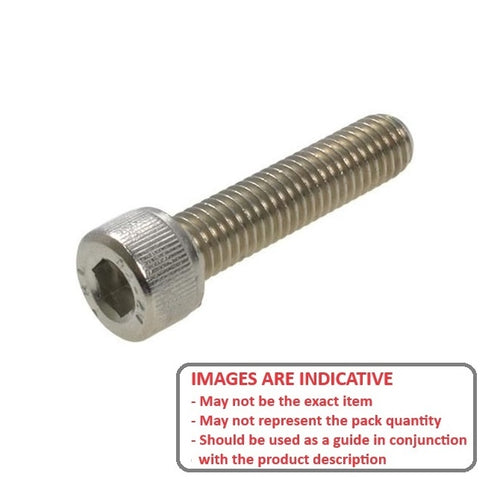

Screws - Socket Cap - AluminiumAluminium Socket Cap Screws. Variety of colours available.
- An expanded range may be available on special order. Please enquire.
- Other colours available on request. Minimum quantities will apply.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : M4 (4x0.7mm)
- Thread Length (L)
8
mm
(Equiv. 0.315 in.) - Material A7050 Aluminum
- Head Length (B Max.) 4 mm
- Head Diameter (A Max.) 7 mm
- Hex Key (D) 3.00 mm
- Colour Natural
- Pitch 0.70 mm
- Threads Per Inch 36.290 TPI
- Min thread Length Fully Threaded mm
- Material Aluminium
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSH-AL-M4-8
- CSHALM48
