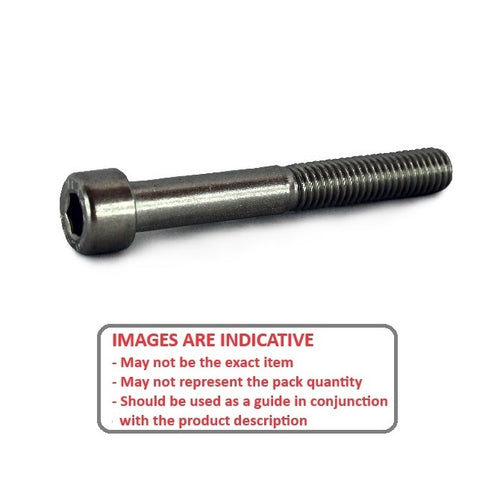

SC040M-065-C-SK-S6L - Datasheet
MBA
Category Information
Screws - Socket Cap - Stainless - 316316 Stainless Socket Cap Screws. UNC - UNF - METRIC - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : M4 (4x0.7mm)
- Thread Length (L)
65
mm
(Equiv. 2.559 in.) - Material 316L Stainless
- Head Length (B Max.) 4.0 mm
- Head Diameter (A Max.) 7.0 mm
- Drive Depth (E) 2.00 mm
- Shank Diameter (C) 3.82 - 4.00 mm
- Hex Key (D) 3.00 mm
- Pitch 0.70 mm
- Threads Per Inch 36.290 TPI
- Min thread Length 20.00 mm
- Material Stainless Steel 316L
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- SC040M065CSK6
