SS040M-0060-S4-BT - Datasheet
MBA
Category Information

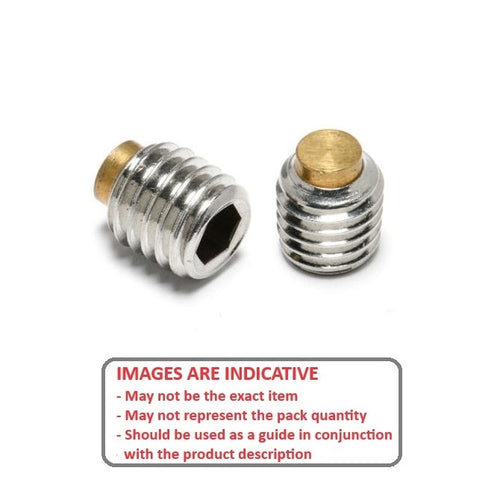

Socket Set Screws - Brass Tipped - Stainless SteelStainless Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.
Product Data
- Thread Size : M4 (4x0.7mm)
- Thread Length (L)
6.0
mm
(Equiv. 0.236 in.) - Type Brass Tipped
- Overall Length (L + L1) 7.000 mm
- Tip Diameter (d) 2.000 mm
- Tip Length (L1) 1.000
- Pitch 0.70 mm
- Threads Per Inch 36.290 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SBCPS4-6
- SBCPS46
