KF040M-016-KN-PH - Datasheet

MBA

Category Information

Knobs - Knurled - Female - Plastic

Plastic Female Knurled Knobs. Black ABS Plastic head.

  • Temperature Range: -30oC to +140oC.

Product Data

  • Thread Size : M4 (4x0.7mm)
  • Head Diameter (D) 15.500 mm
    (Equiv. 0.61 in.)
  • Screw Depth (L) 7.000 mm
    (Equiv. 0.276 in.)
  • Colour Black
  • Brass
  • Top Dia. (D1) 10.50 mm
  • Hub Length (H1) 11.000 mm
  • 2.00
  • Material Phenolic
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NZWF4
  • CNZWF4
View full details

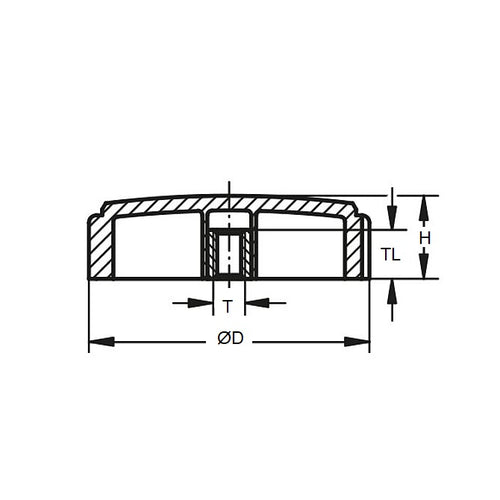

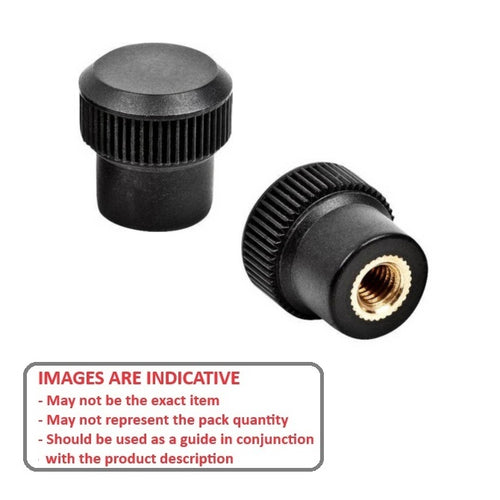

KF040M-016-KN-PHDiagramKF040M-016-KN-PHImage
