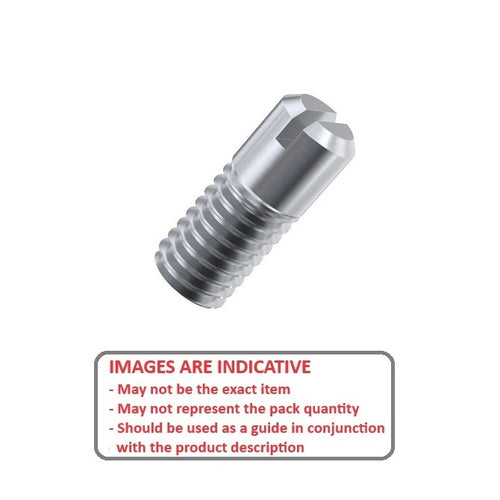

SS040M-0120-ASP - Datasheet

MBA

Product Data

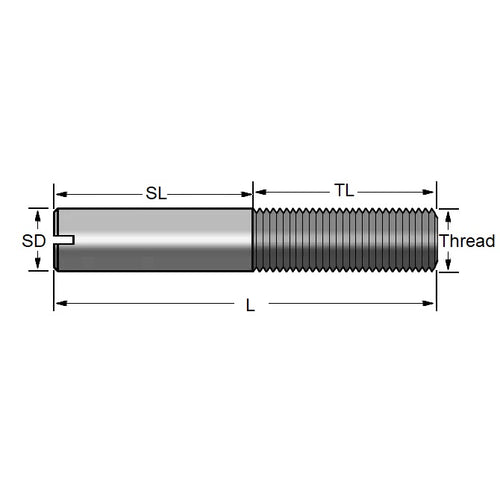

• Thread Size : M4 (4x0.7mm)
• Overall Length (L) 12 mm
  (Equiv. 0.472 in.)
• Type Partial Thread
• Thread Length 4.80 mm
• Shaft Length 7.20 mm
• Shaft Diameter 4.00 mm - 0.018 / + 0.000
• Slotted
• Material Steel Alloy, Rockwell B75

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
