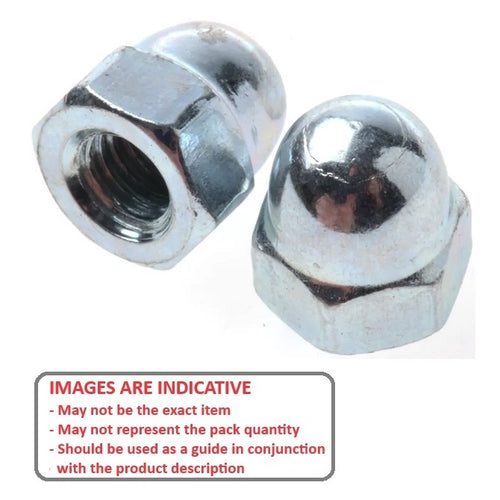

NT030M-DM-CC - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size : M3 (3x0.5mm)
• Material Steel - Chrome Plated
• Height (B) 7 mm
  (Equiv. 0.276 in.)
• Across Flats (A) 5.5
• Pitch 0.500 mm
• Threads Per Inch 50.8 TPI
• Material Steel - Chrome Plated

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Hitech MSDNCP3
