SC030M-008-H-S4 - Datasheet

Brighton Best

Category Information

Screws - Hex Head - 304 Stainless - Standard

Standard 304 Stainless Hex Head Screws. Metric - UNF - UNC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : M3 (3x0.5mm)
  • Thread Length (L) 8 mm
    (Equiv. 0.315 in.)
  • Material 304 Stainless
  • Type Hex Head
  • Pitch 0.500 mm
  • Threads Per Inch 50.8 TPI
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • 91287A012
View full details

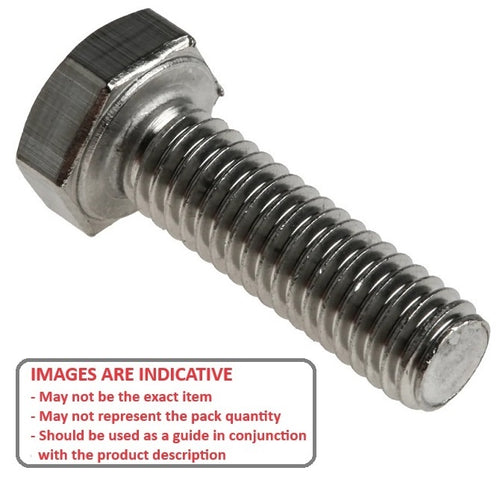

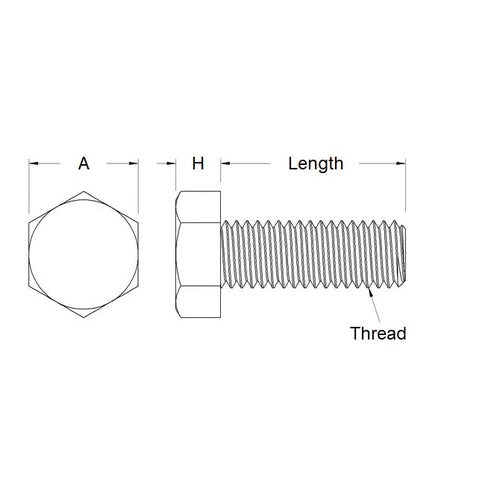

SC030M-008-H-S4DiagramSC030M-008-H-S4Image
