SK030M-006-SK-T5 - Datasheet

MBA

Category Information

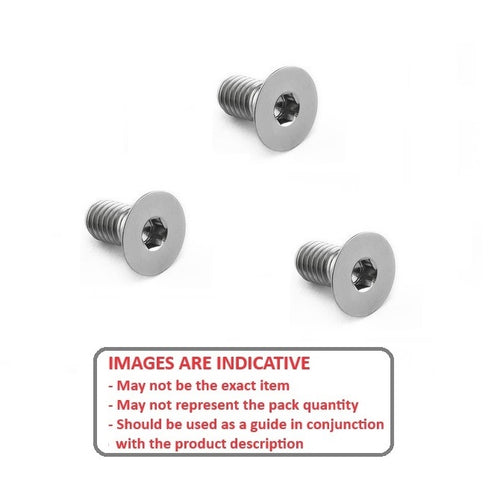

Screws - Countersunk - Socket - Titanium Ti-Gr5 Ti-6Al4v - DIN7991

DIN7991 Titanium Ti-Gr5 Ti-6Al4v Socket Countersunk Screws. Flat Head Countersunk. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm². Yield Strength 84.5kgf / mm². Elongation 10 Percent.

An expanded range may be available on special order. Please enquire.
Metric Sizes to DIN7991. Used in critical aircraft structural components. UNS R56400.
ISO 10642
Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm². Yield Strength 84.5kgf / mm². Elongation 10 Percent.
The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.

Product Data

Thread Size (C) : M3 (3x0.5mm)
Overall Length (L) 6 mm _{+/- 0.25}
(Equiv. 0.236 in.)
Material Ti-6al4v Grade 5
Max Head Diameter 6.0 mm
Max Head Height 1.7 mm
Hex Key (s) 2.00 mm
Countersunk Angle 90 °
Pitch 0.500 mm
Threads Per Inch 50.8 TPI
DIN7991
Material Titanium Ti-Gr-5 - 6AL-4V

Country of Origin: TW
