Category Information
Screws - Security - Socket - Countersunk - StainlessStainless Countersunk Socket Security Screws. Metric only.
- Use special tool listed under Screws - Security - Socket - Tools.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

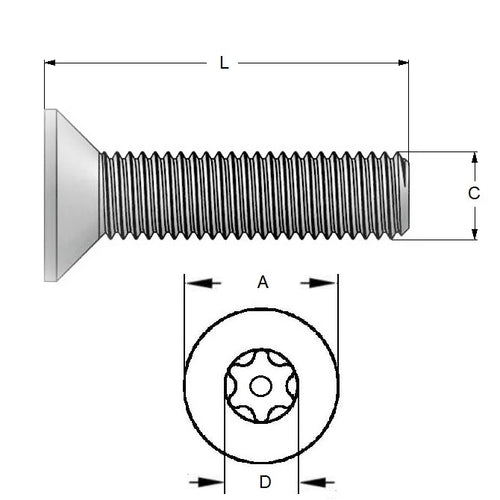

- Thread Size (C) : M3 (3x0.5mm)
- Length
6
mm
(Equiv. 0.236 in.) - Material 304 Stainless
- Tool To Match Torx Security Pin Type
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
