Category Information

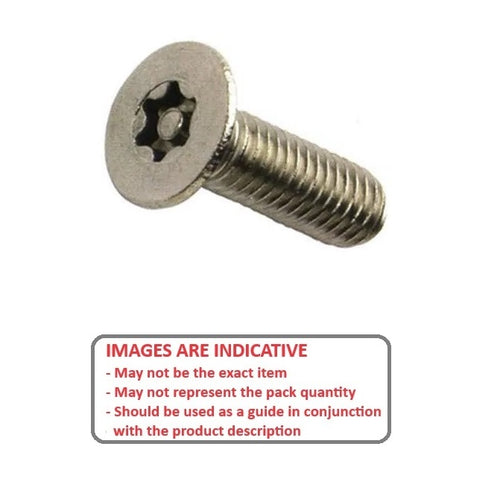

Screws - Security - Socket - Countersunk - StainlessStainless Countersunk Socket Security Screws. Metric only.
- Use special tool listed under Screws - Security - Socket - Tools.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

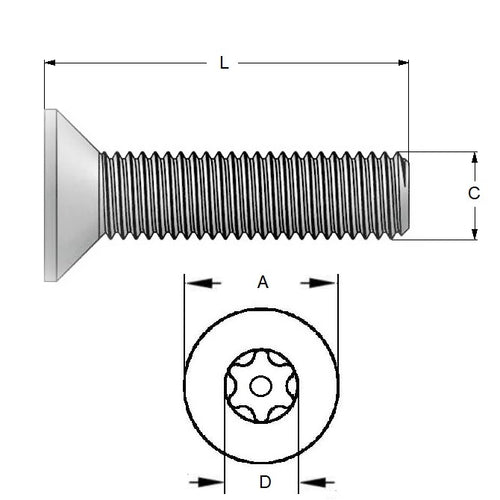

- Thread Size (C) : M3 (3x0.5mm)
- Length
6
mm
(Equiv. 0.236 in.) - Material 304 Stainless
- Tool To Match MD7TOOL-M3
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Fastenright MMPHC03006A2
