THS030M-006-K-3 - Datasheet
MBA
Category Information

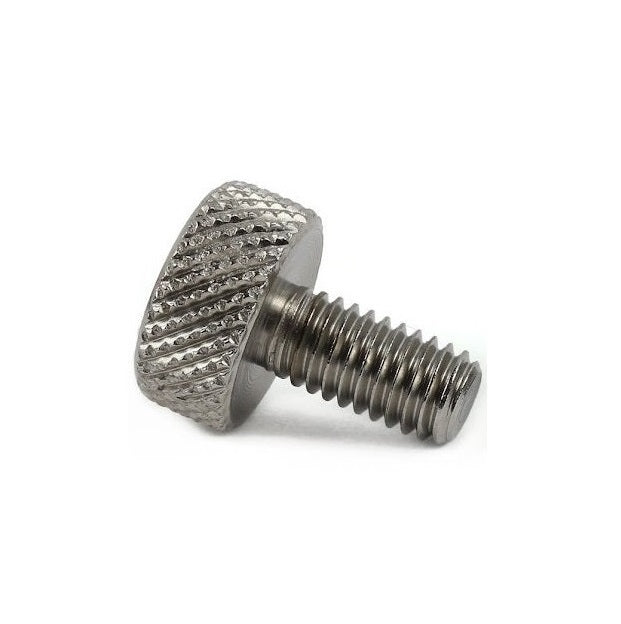

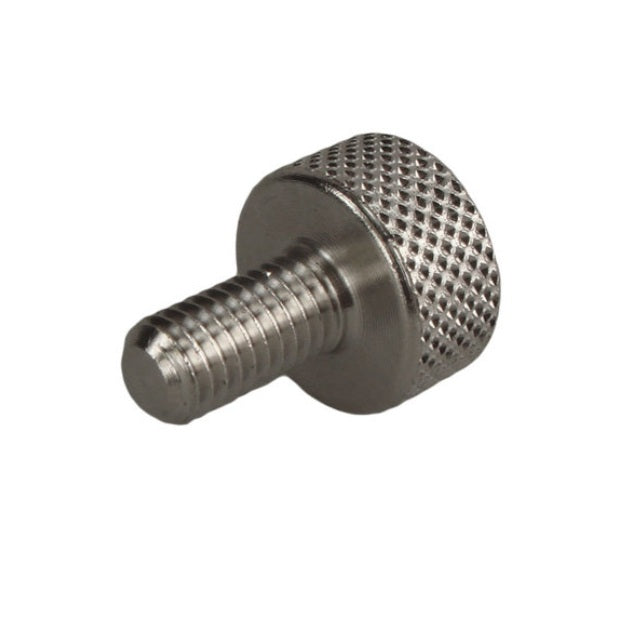

Screws - Thumb - Knurled - Stainless - StandardStandard Stainless Knurled Thumb Screws. Stainless steel knurled head thumb screws
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

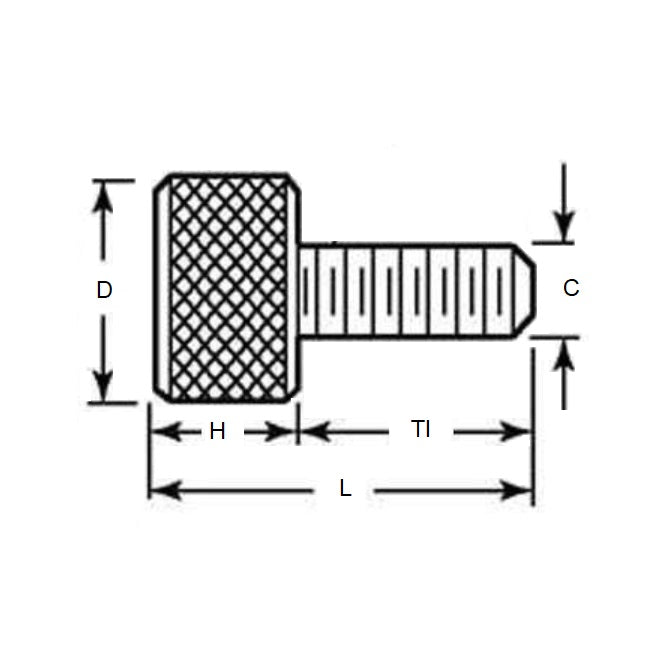

- Thread Size (C) : M3 (3x0.5mm)
- Thread Length (Tl)
6.00
mm
(Equiv. 0.236 in.) - Overall Length (L)
10.50
mm
(Equiv. 0.413 in.) - Head Diameter (D) 12.00 mm
- Head Height (H) 4.50 mm
- Finish Plain
- Material Stainless Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- PTS-38
- PTS38
