Miniature Bearings Australia
SS030M-0052-S4-RB - Datasheet
MBA
Category Information

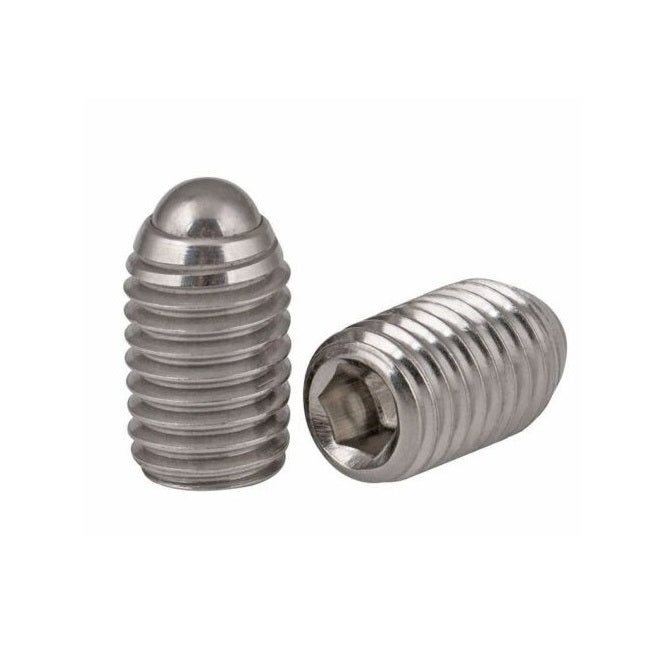

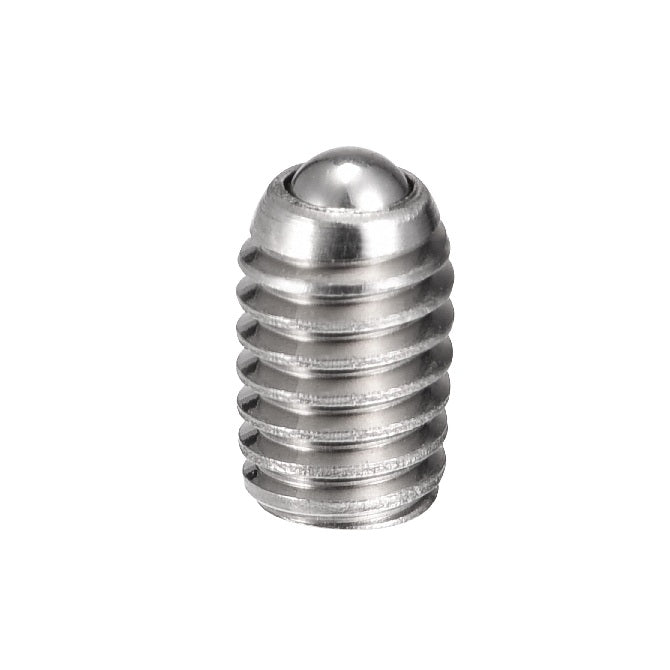

Socket Set Screws - Rolling Ball Tip - Stainless SteelStainless Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Various ball materials include Alumina, Polyacetal or 440C Stainless Steel
Product Data
- Thread Size : M3 (3x0.5mm)
- Thread Length (L)
4.7
mm
(Equiv. 0.185 in.) - Type Rolling Ball Tip
- Overall Length (L) 5.2 mm
- Ball Diameter (D) 1.5 mm
- Hex Key Size 1.5
- Body Material 304 Stainless Steel (A2, 18-8)
- Ball Material 440C Stainless HRC 50-55
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material 304 Stainless Steel (A2, 18-8) with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SCSS-M3X5-R
- SCSSM3X5R
- S705YBM0305
