SC030M-025-P-PH-TC1 - Datasheet

MBA

Category Information

Screws - Pan Head - Phillips - Titanium - CP Grade 1

CP Grade 1 Titanium Phillips Pan Head Screws. Metal Thread Screws. Metric only. CP1 Commercially Pure Titanium Grade 1. Tensile Strength 24.6 kgf/mm2. Yield Strength 17.6 kgf/mm2. Elongation 24 Percent.

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts. Commercially pure for general industrial corrosion applications. UNS R50250.
  • Widely used in power generation, chemical processing, aerospace and medical applications.
  • Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Thread Size (C) : M3 (3x0.5mm)
  • Thread Length (L) 25 mm
    (Equiv. 0.984 in.)
  • Material Titanium CP Grade 1
  • Pitch 0.500 mm
  • Threads Per Inch 50.8 TPI
  • Material Titanium - CP1 Commercially Pure
Country of Origin: US

Product Compliance and Data

Additional Resources

View full details

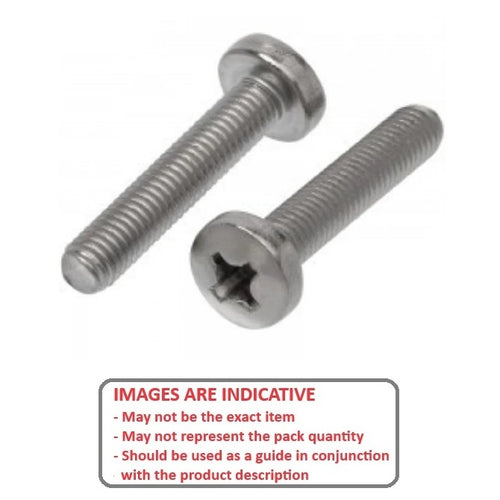

SC030M-025-P-PH-TC1DiagramSC030M-025-P-PH-TC1Image
