SC030M-020-P-PH-TC1 - Datasheet
MBA
Category Information

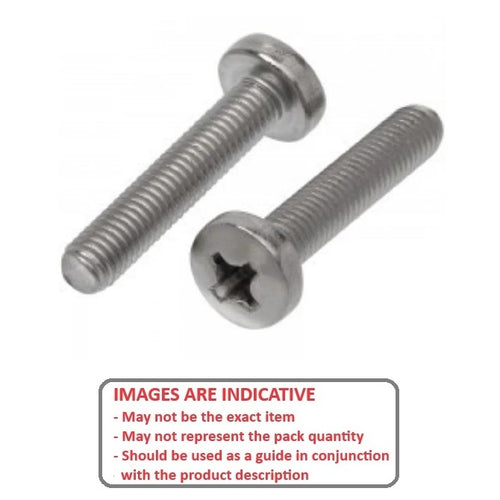

Screws - Pan Head - Phillips - Titanium - CP Grade 1CP Grade 1 Titanium Phillips Pan Head Screws. Metal Thread Screws. Metric only. CP1 Commercially Pure Titanium Grade 1. Tensile Strength 24.6 kgf/mm2. Yield Strength 17.6 kgf/mm2. Elongation 24 Percent.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts. Commercially pure for general industrial corrosion applications. UNS R50250.
- Widely used in power generation, chemical processing, aerospace and medical applications.
- Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M3 (3x0.5mm)
- Thread Length (L)
20
mm
(Equiv. 0.787 in.) - Material Titanium CP Grade 1
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material Titanium - CP1 Commercially Pure
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
