SC030M-016-B-SK-CZ - Datasheet
Brighton Best
Category Information

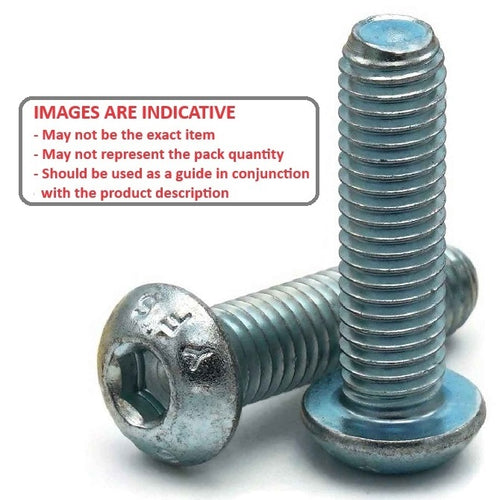

Screws - Button - Socket - Zinc PlatedZinc Plated Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
- Thread Size (C) : M3 (3x0.5mm)
- Thread Length (L)
16
mm
(Equiv. 0.63 in.) - Material Zinc Plated Steel
- Max Head Diameter 5.7 mm
- Max Head Height 1.7 mm
- Hex Key (D) 2.00 mm
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 889012
