SC030M-010-P-SL-CZ - Datasheet
MBA
Category Information

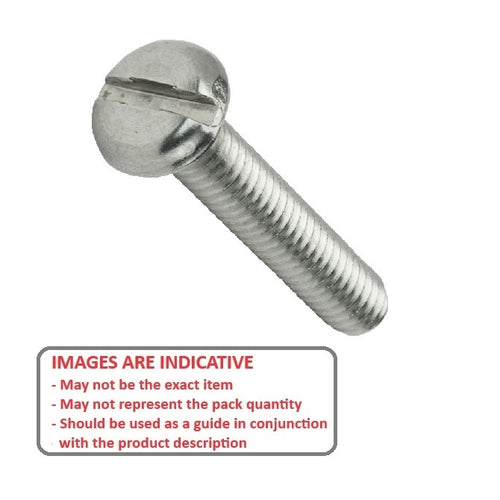

Screws - Pan Head - Slotted - SteelSteel Slotted Pan Head Screws. Metal Thread Screws. Metric only.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : M3 (3x0.5mm)
- Thread Length (L)
10
mm
(Equiv. 0.394 in.) - Material Zinc Plated Steel
- Max Head Diameter 6.0 mm
- Max Head Height 2.4 mm
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90353A144
- Hitech MSPSZP310
