SCS0300-010-B-SK-S4 - Datasheet
MBA
Category Information

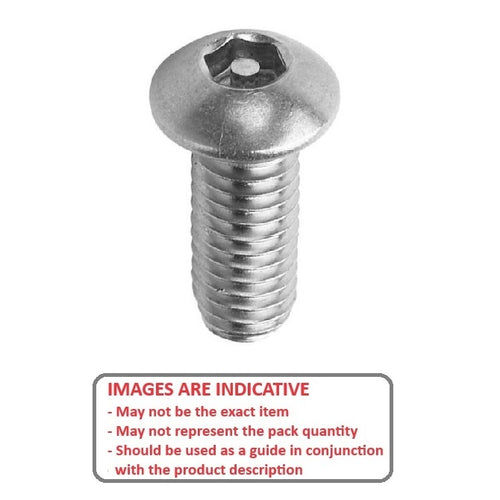

Screws - Security - Button - SocketSocket Button Security Screws. Metric only.
- Use special tool listed under Screws - Security - Socket - Tools.
Product Data
- Thread Size (C) : M3 (3x0.5mm)
- Length
10
mm
(Equiv. 0.394 in.) - Material 304 Stainless
- Power Bit to Match TL-SEC-0300-SK-PB
- Hand Key to Match TL-SEC-0300-SK-HK
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Fastenright MMPHB03010A2
