NT030M-HH-S6 - Datasheet
Brighton Best
Category Information

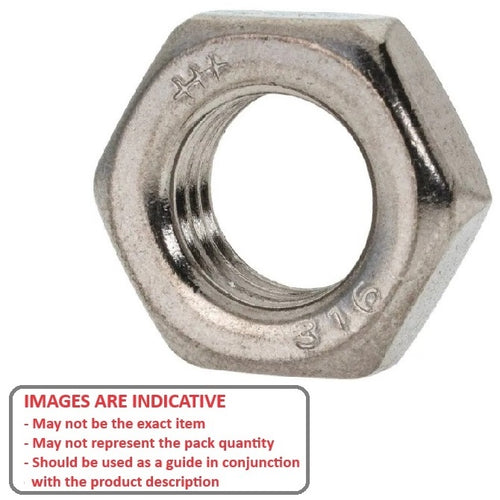

Nuts - Hexagonal - Half - Stainless SteelStainless Steel Half Hexagonal Nuts. UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M3 (3x0.5mm)
- Thickness (H)
1.55
mm
(Equiv. 0.061 in.) - Across Flats (A/F)
5.5
mm
(Equiv. 0.217 in.) - Type Half Nut
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 562030
- 93935A320
