IN-TP-030M-10-WSS - Datasheet
MBA
Category Information

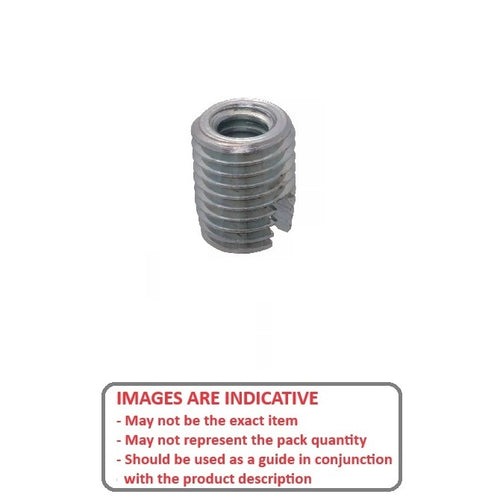

Inserts - Self Tapping - For Wood - Slotted Drive - ShortShort Slotted Drive For Wood Self Tapping Inserts. Threaded inserts are screwed into pre-formed or pre-drilled holes and cut their own threads. Perfect for permanent installations.
- Made from brass
- Install with a screwdriver
- Superior holding power in hard and soft woods, particle board and other wood products. Long pilot assists with straight driving into a drilled hole.
Product Data
- Internal Thread : M3 (3x0.5mm)
- Rec. Hole Diameter
6.350
mm

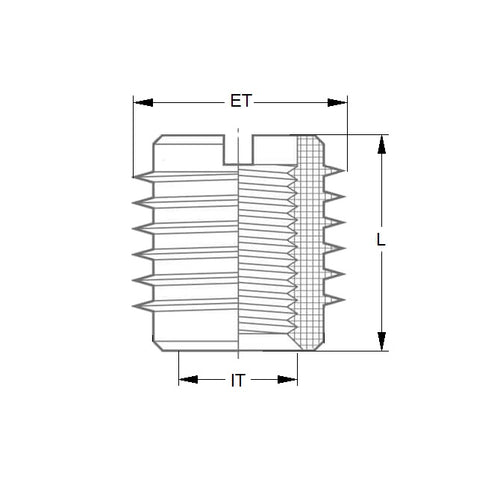

(Equiv. 0.25 in.) - Length (L)
9.525
mm
(Equiv. 0.375 in.) - Outside Diameter (B) 8.890 mm
- Overall Length 9.525
Product Compliance and Data
Additional Resources
Cross References
- INTP0300095WS
