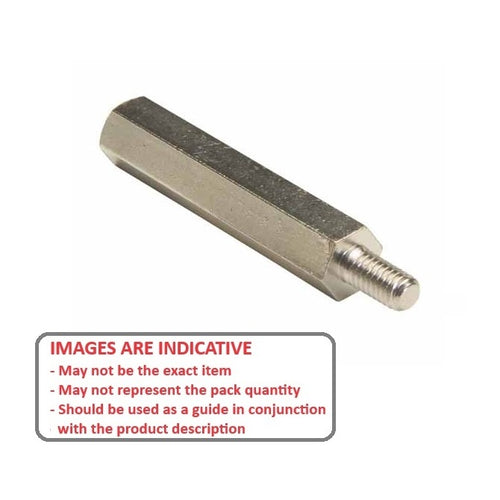

SHX-TP-0300-06-021-BZ - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

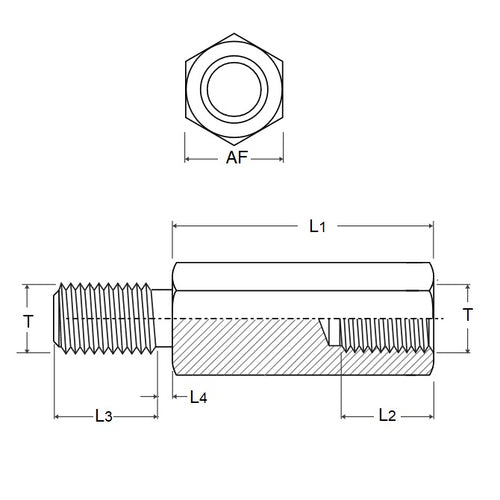

• Thread Size : M3 (3x0.5mm)
• Stud Length (L3) 4.76 mm
• Base Length (L1) 16.00 mm
• Across Flats (A/F) 6.00 mm
• Bore Thread Length (L2) 6.40 mm
• Finish Chromate Zinc Plated
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 93655A106
• Reid Tool® RAF-1164
• RAF1164
