KF030M-012-KN-PH - Datasheet

MBA

Category Information

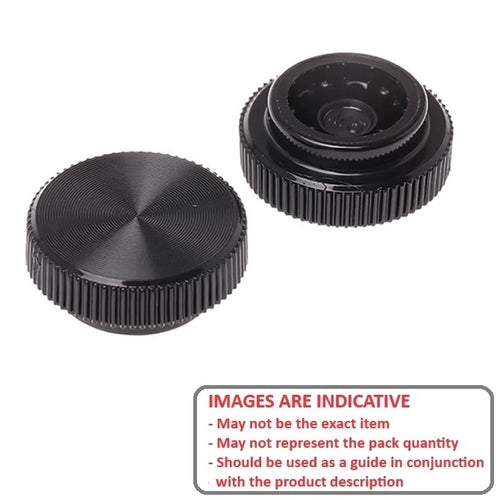

Knobs - Knurled - Female - Phenolic

Phenolic Female Knurled Knobs. Plastic (high grade gloss black phenolic) with Steel Insert.

    Product Data

    • Thread Size : M3 (3x0.5mm)
    • Head Diameter (A) 12.00 mm
    • Screw Length 6.5 mm
    • Knob Length (B) 13.5 mm
    • Hub Thickness (C) 10.0 mm
    • Material Thermoplastic
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • Reid Tool® KPB-1010
    • KPB1010
    View full details

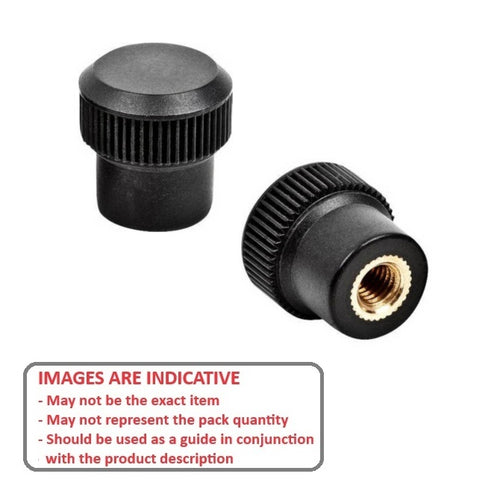

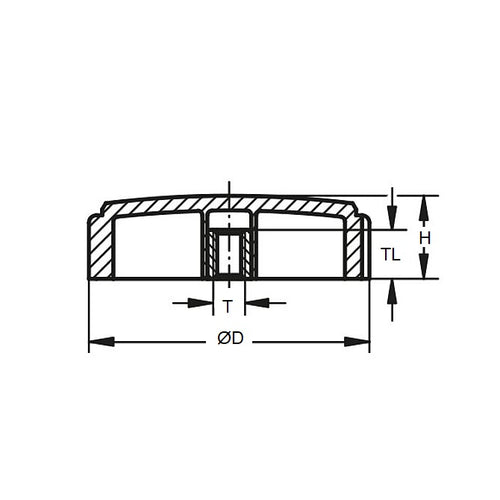

    KF030M-012-KN-PHDiagramKF030M-012-KN-PHImage
