SPANC-030M-025 - Datasheet

MBA

Category Information

Spring Anchors - Steel

Steel Spring Anchors. C-12114 steel selection. Black oxide finish.

  • An economical way to secure the ends of extension springs, and provide easy adjustment.

Product Data

  • Thread : M3 (3x0.5mm)

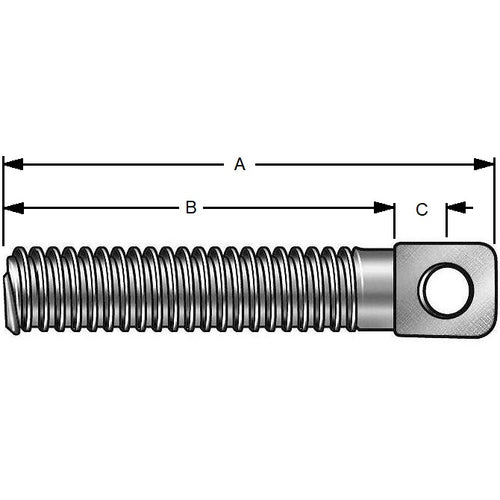

  • Overall Length (A) 25.00 mm
  • Thread Length (B) 19.00 mm
  • Thread to Centre Eye (C) 1.50 mm
  • Hole Size 1.50 mm
  • Material Trivalent Chromate S45C Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-AIPO3-25
  • CAIPO325
View full details

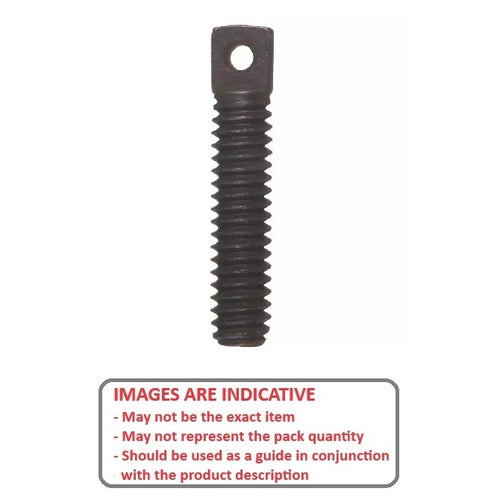

SPANC-030M-025DiagramSPANC-030M-025Image
