NT360M-HH-S6 - Datasheet
Brighton Best
Category Information

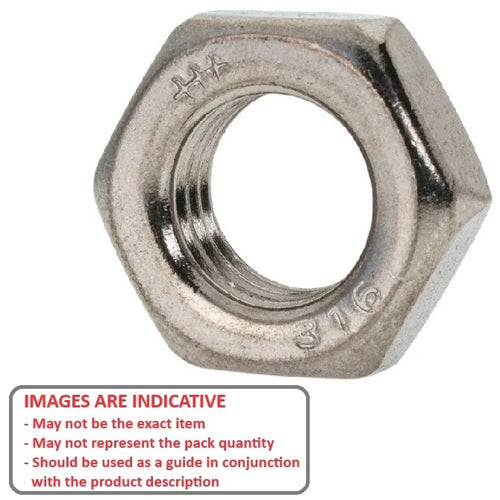

Nuts - Hexagonal - Half - Stainless SteelStainless Steel Half Hexagonal Nuts. UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.

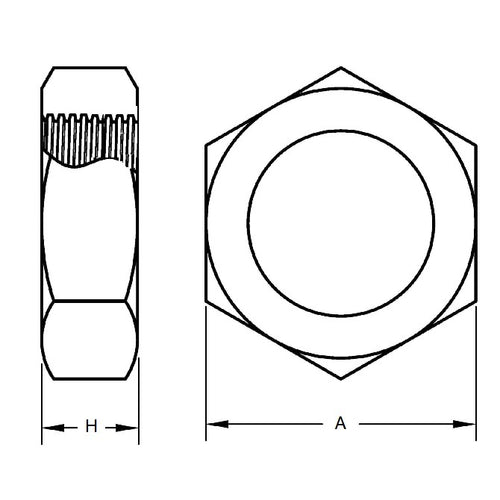

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M36 (36x4mm)
- Thickness (H)
16.9
mm
(Equiv. 0.665 in.) - Across Flats (A/F)
55.0
mm
(Equiv. 2.165 in.) - Type Half Nut
- Pitch 4.000 mm
- Threads Per Inch 6.35 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 562360
- 93935A380
