SC030M-008-F-SL-S4 - Datasheet
MBA
Category Information

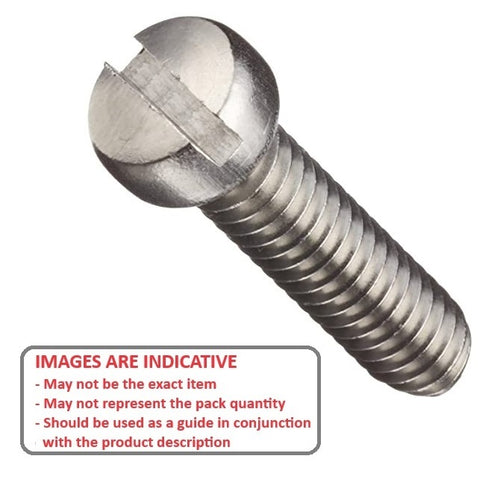

Screws - Fillister Head - Slotted - 304 Stainless304 Stainless Slotted Fillister Head Screws. Metric - UNC - UNF
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
- DIN 84
Product Data

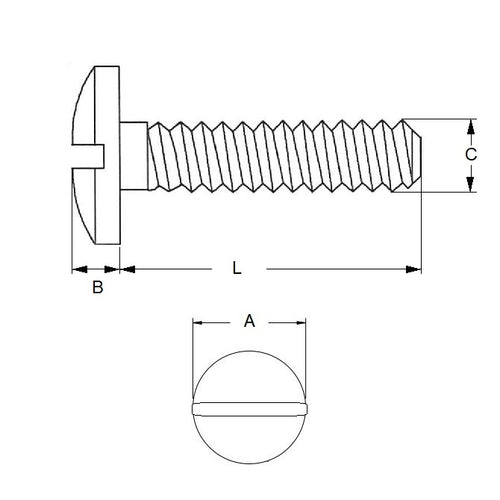

- Thread Size (C) : M3 (3x0.5mm)
- Thread Length (L)
8
mm
(Equiv. 0.315 in.) - Material 304 Stainless
- Max Head Diameter 5.5 mm
- Max Head Height 2.0 mm
- Type Fillister (Cheese) / Slotted
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91800A118
- MD0084MXO030X008
