SS030M-0080-S4-BT - Datasheet
MBA
Category Information

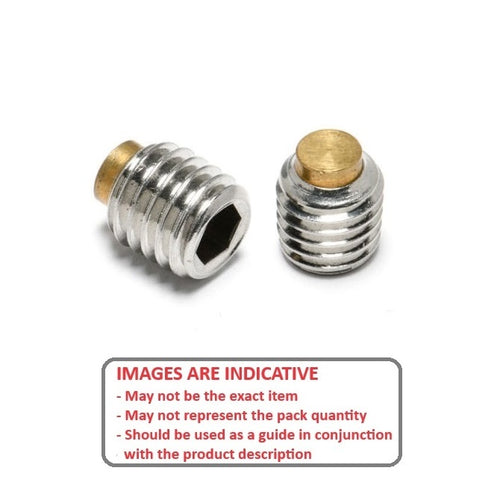

Socket Set Screws - Brass Tipped - Stainless SteelStainless Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.
Product Data
- Thread Size : M3 (3x0.5mm)
- Thread Length (L)
8.0
mm
(Equiv. 0.315 in.) - Type Brass Tipped
- Overall Length (L + L1) 8.500 mm
- Tip Diameter (d) 1.500 mm
- Tip Length (L1) 0.500
- Pitch 0.50 mm
- Threads Per Inch 50.800 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SBCPS3-8
- SBCPS38
