SC030M-006-C-SK-S6L - Datasheet
MBA
Category Information

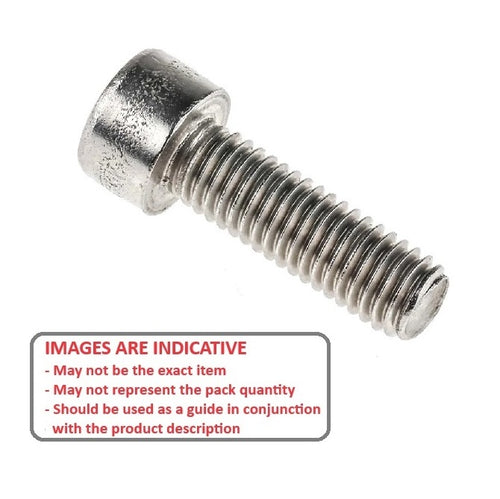

Screws - Socket Cap - Stainless - 316316 Stainless Socket Cap Screws. UNC - UNF - METRIC - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : M3 (3x0.5mm)
- Thread Length (L)
6
mm
(Equiv. 0.236 in.) - Material 316L Stainless
- Head Length (B Max.) 3.0 mm
- Head Diameter (A Max.) 5.500 mm
- Drive Depth (E) 1.300 mm
- Shank Diameter (C) 2.86 - 3.00 mm
- Hex Key (D) 2.50 mm
- Pitch 0.50 mm
- Threads Per Inch 50.800 TPI
- Min thread Length Fully Threaded mm
- Material Stainless Steel 316L
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- SC030M006CSK6
