SC035M-008-P-PH-S4 - Datasheet
MBA
Category Information

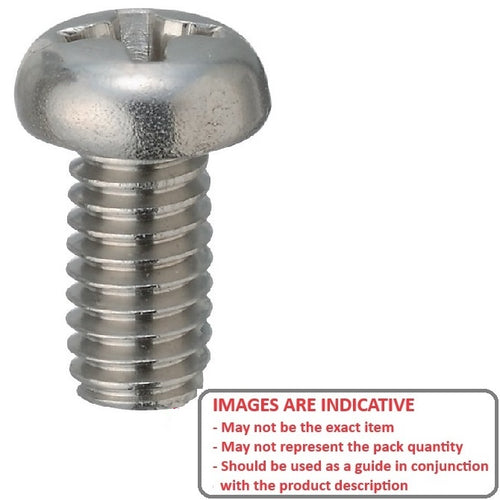

Screws - Pan Head - Phillips - 303-304 Stainless303-304 Stainless Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC - Pan, cheese, fillister and round head.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M3.5 (3.5x0.6mm)
- Thread Length (L)
8
mm
(Equiv. 0.315 in.) - Material 304 Stainless
- Max Head Diameter 7.0 mm
- Max Head Height 2.7 mm
- Pitch 0.600 mm
- Threads Per Inch 42.33 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92000A153
- MicroFast MSPPS3508
