Miniature Bearings Australia
SK035M-012-SL-CZ - Datasheet
MBA
Category Information
Screws - Countersunk - Slotted - SteelSteel Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - BA - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

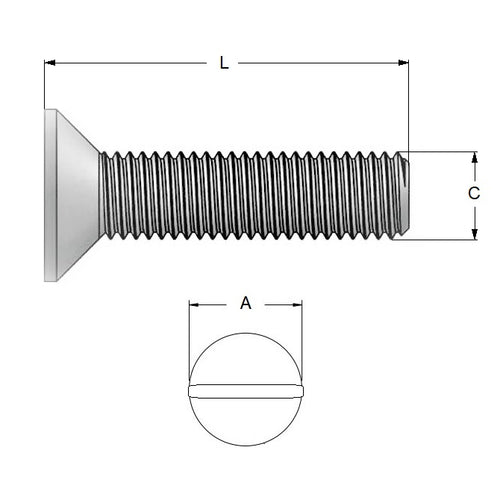

- Thread Size (C) : M3.5 (3.5x0.6mm)
- Overall Length (L)
12
mm
(Equiv. 0.472 in.) - Material Zinc Plated Steel
- Max Head Diameter 8.2 mm
- Max Head Height 2.3 mm
- Type Countersunk / Slotted
- Pitch 0.600 mm
- Threads Per Inch 42.33 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSCSZP3512
