SS030M-0050-AS-AT - Datasheet
MBA
Category Information

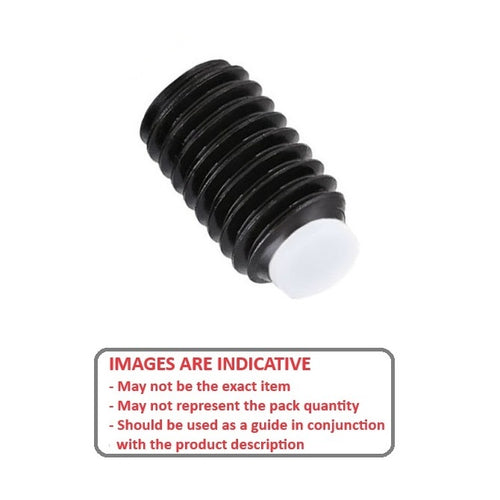

Socket Set Screws - Acetal Tipped - Alloy SteelAlloy Steel Acetal Tipped Socket Set Screws. Acetal tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
- Socket driven grub screws that uses a non-metallic tip made of acetal to prevent damage to the shaft it secures.
- Acetal tip compresses into the threads of the set screw and conforms to the surface of the shaft, providing a self-locking mechanism and preventing marring or indentation, unlike traditional metal-tipped set screws.
Product Data
- Thread Size : M3 (3x0.5mm)
- Thread Length (L)
5.0
mm
(Equiv. 0.197 in.) - Type Acetal Tipped
- Overall Length (L + L1) 5.500 mm
- Tip Diameter (d) 1.500 mm
- Tip Length (L1) 0.500
- Pitch 0.50 mm
- Threads Per Inch 50.800 TPI
- Material Black Oxide Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SBPP3-5
- SBPP35
