SC035M-012-C-SK-C - Datasheet
Brighton Best
Category Information

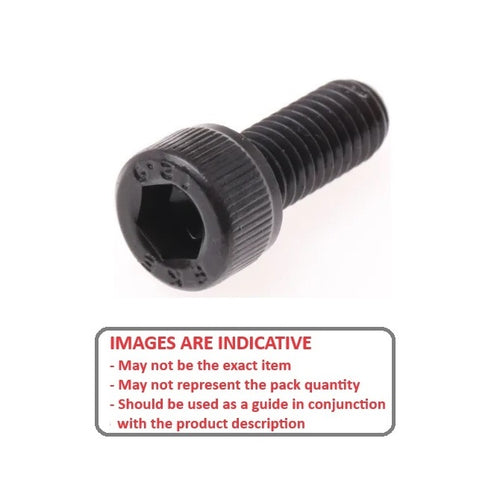

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : M3.5 (3.5x0.6mm)
- Thread Length (L)
12
mm
(Equiv. 0.472 in.) - Material High Tensile Steel / Black Oxide
- Head Length (B Max.) 3.4 mm
- Head Diameter (A Max.) 6.0 mm
- Drive Depth (E) 1.50 mm
- Shank Diameter (C) 3.36 - 3.50 mm
- Hex Key (D) 2.50 mm
- Pitch 0.600 mm
- Threads Per Inch 42.33 TPI
- Min thread Length 12 mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 532886
- 91290A383
- MicroFast SCM3512
