SC030M-004-ULH-SKT-CZ - Datasheet
MBA
Category Information

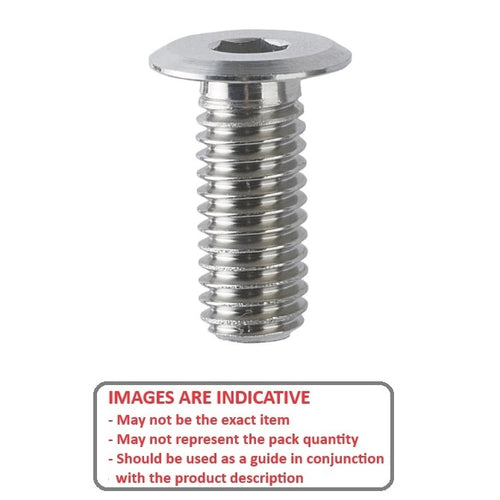

Screws - Ultra Low Head - Socket - SteelSteel Socket Ultra Low Head Screws. Metric Steel with Phosphate Treatment
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data
- Thread Size (C) : M3 (3x0.5mm)
- Thread Length (L)
4
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.) - Material Alloy Steel - Trivalent Chromate
- Max Head Dia. 6.0 mm
- Max Head Height 1.3 mm
- Usual Hex Key (D) 1.50 mm
- Type Ultra Low Head Socket
- Pitch 0.50 mm
- Threads Per Inch 50.80 TPI
- Material Steel - Trivalent Chromate Zinc Plated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi C-CBSA3-4
- CCBSA34
