THS030M-016-K-3 - Datasheet
MBA
Category Information

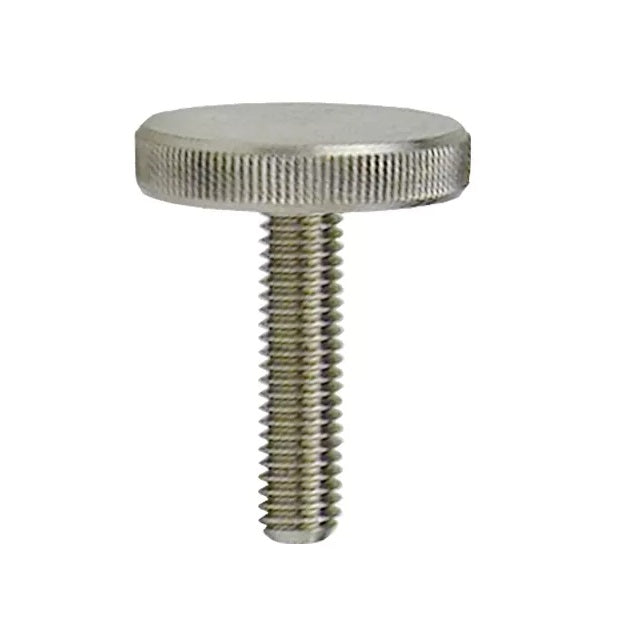

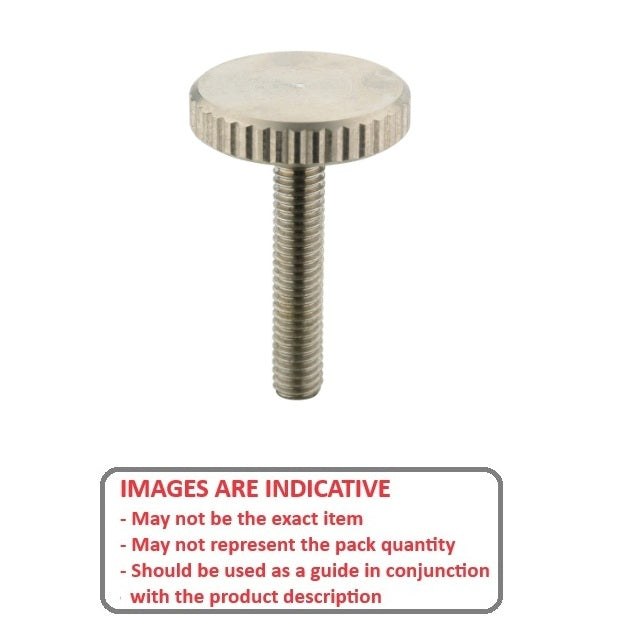

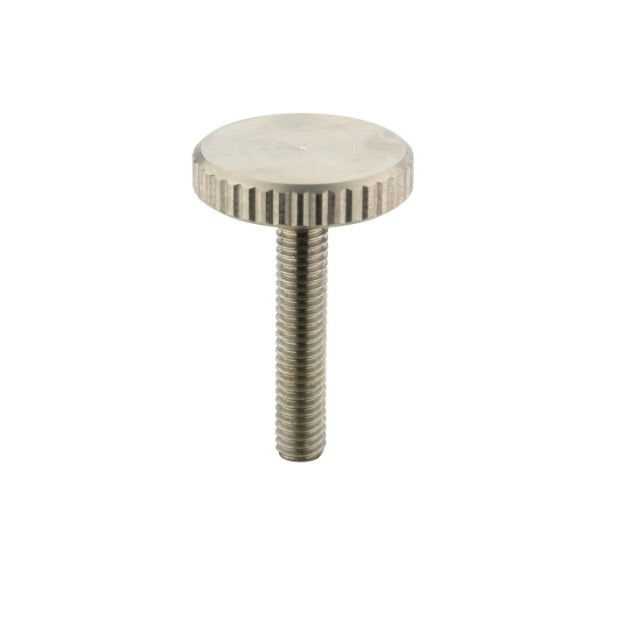

Screws - Thumb - Knurled - Stainless - StandardStandard Stainless Knurled Thumb Screws. Stainless steel knurled head thumb screws
- An expanded range may be available on special order. Please enquire.
Product Data

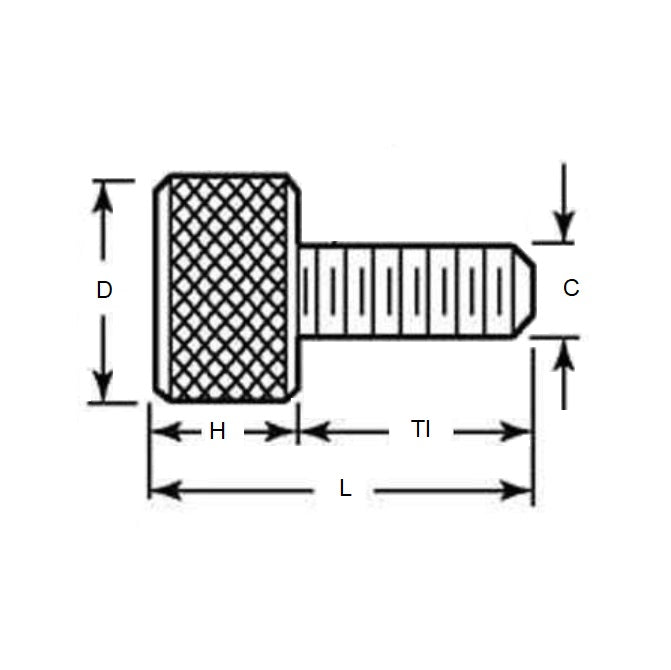

- Thread Size (C) : M3 (3x0.5mm)
- Thread Length (Tl)
16.00
mm
(Equiv. 0.63 in.) - Overall Length (L)
18.50
mm
(Equiv. 0.728 in.) - Head Diameter (D) 12.00 mm
- Head Height (H) 2.50 mm
- Finish Plain
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- THS030016K3
