SS030M-0100-AS-AT - Datasheet

MBA

Category Information

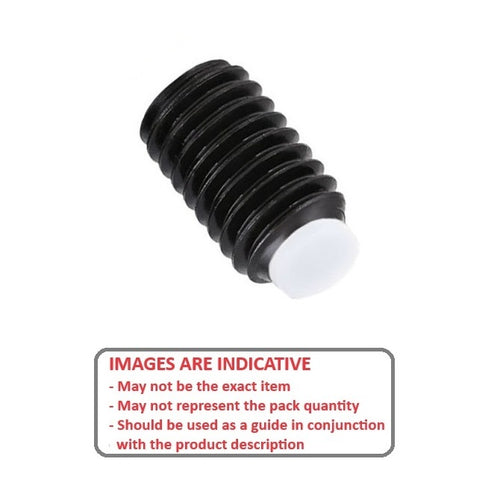

Socket Set Screws - Acetal Tipped - Alloy Steel

Alloy Steel Acetal Tipped Socket Set Screws. Acetal tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.

  • Socket driven grub screws that uses a non-metallic tip made of acetal to prevent damage to the shaft it secures.
  • Acetal tip compresses into the threads of the set screw and conforms to the surface of the shaft, providing a self-locking mechanism and preventing marring or indentation, unlike traditional metal-tipped set screws.

Product Data

  • Thread Size : M3 (3x0.5mm)
  • Thread Length (L) 10.0 mm
    (Equiv. 0.394 in.)
  • Type Acetal Tipped
  • Overall Length (L + L1) 10.500 mm
  • Tip Diameter (d) 1.500 mm
  • Tip Length (L1) 0.500
  • Pitch 0.50 mm
  • Threads Per Inch 50.800 TPI
  • Material Black Oxide Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi SBPP3-10
  • SBPP310
