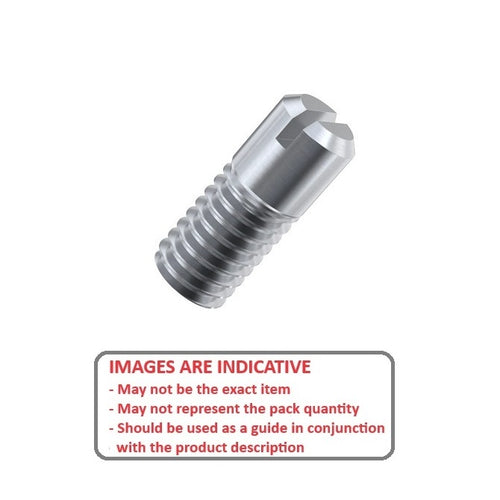

SS030M-0100-ASP - Datasheet

MBA

Product Data

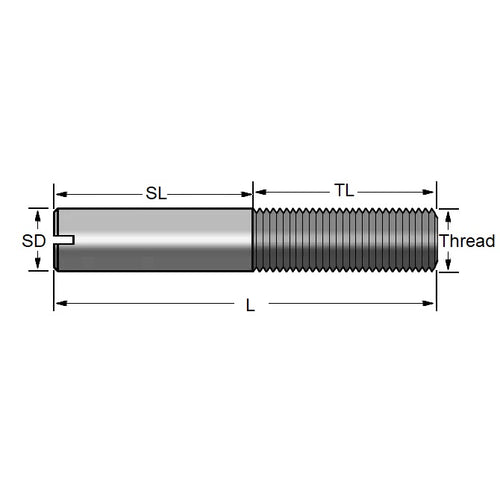

• Thread Size : M3 (3x0.5mm)
• Overall Length (L) 10 mm
  (Equiv. 0.394 in.)
• Type Partial Thread
• Thread Length 3.60 mm
• Shaft Length 6.40 mm
• Shaft Diameter 3.00 mm - 0.014 / + 0.000
• Slotted
• Material Steel Alloy, Rockwell B75

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
