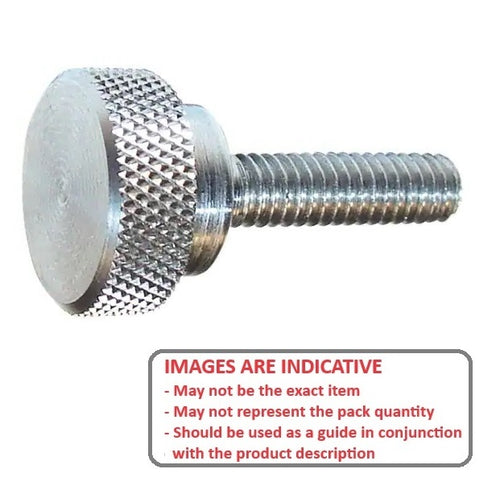

THS030M-010-K-3-SHL - Datasheet

MBA

Product Data

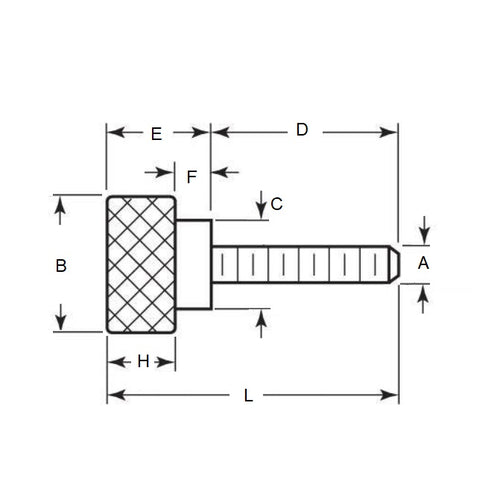

• Thread Size (A) : M3 (3x0.5mm)
• Thread Length (D) 10.00 mm
• Overall Length (L) 17.500 mm
• Head Diameter (B) 12.00 mm
• Head Height incl Shoulder (E) 7.50 mm
• Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• PDF Screws Catalogue

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Misumi® C-NKOS3-10
• CNKOS310
