SK020M-008-PH-S4 - Datasheet

Brighton Best

Category Information

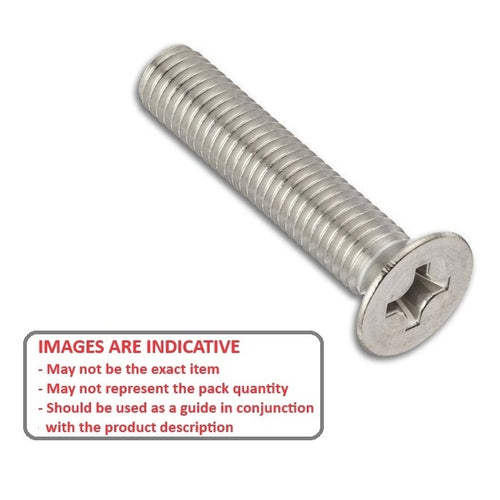

Screws - Countersunk - Phillips - 304 Stainless

304 Stainless Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

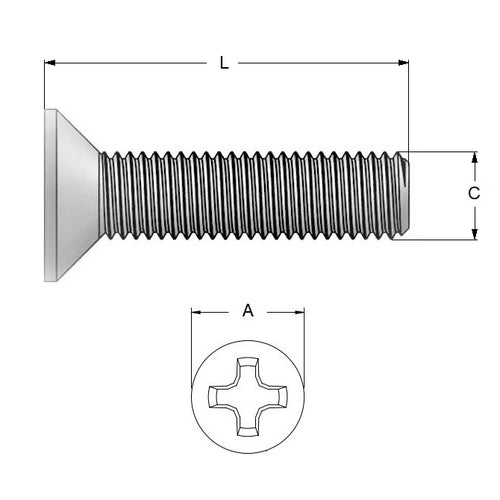

Product Data

  • Thread Size (C) : M2 (2x0.4mm)
  • Overall Length (L) 8 mm
    (Equiv. 0.315 in.)
  • Material 304 Stainless
  • Max Head Diameter (A) 3.80 mm
  • Max Head Height 1.20 mm
  • Type Countersunk / Philips
  • Pitch 0.400 mm
  • Threads Per Inch 63.5 TPI
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Brighton Best 674025
  • 92010A004
  • Small Parts MMFX-2-8
  • MMFX28
