Miniature Bearings Australia
SS020M-0042-S4-NT - Datasheet
MBA
Category Information

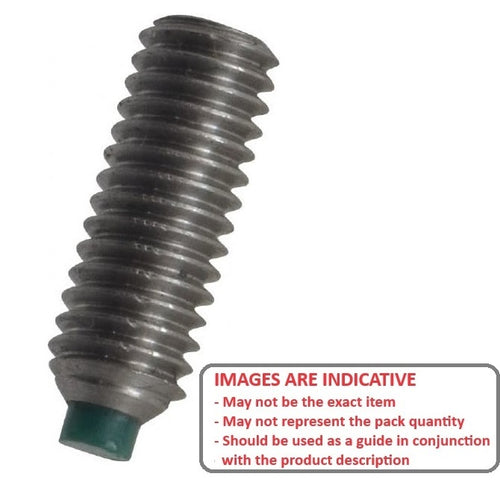

Socket Set Screws - Nylon Tipped - 304 Stainless Steel304 Stainless Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
Product Data
- Thread Size : M2 (2x0.4mm)
- Thread Length (L)
4.2
mm
(Equiv. 0.165 in.) - Type Nylon Tipped
- Overall Length (L + L1) 5.0 mm
- Tip Diameter (d) 0.8 mm
- Tip Length (L1) 0.8
- Hex Key Size 0.90
- Pitch 0.400 mm
- Threads Per Inch 63.5 TPI
- Drive Type Socket
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 93285A014
- A9X93MSO020050
- NTM2-5
- NTM25
