SC020M-016-P-PZ-S4 - Datasheet

Brighton Best

Category Information

Screws - Pan Head - Pozidrive - 303-304 Stainless

303-304 Stainless Pozidrive Pan Head Screws. Metric Only

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : M2 (2x0.4mm)
  • Thread Length (L) 16 mm
    (Equiv. 0.63 in.)
  • Material 304 Stainless
  • Max Head Diameter 4.0 mm
  • Max Head Height 1.6 mm
  • Pitch 0.400 mm
  • Threads Per Inch 63.5 TPI
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: TW

Product Compliance and Data

Additional Resources

View full details

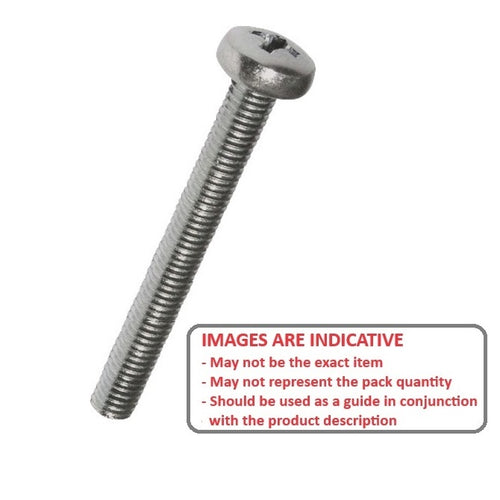

SC020M-016-P-PZ-S4DiagramSC020M-016-P-PZ-S4Image
