SC020M-012-P-PH-CZ - Datasheet
MBA
Category Information

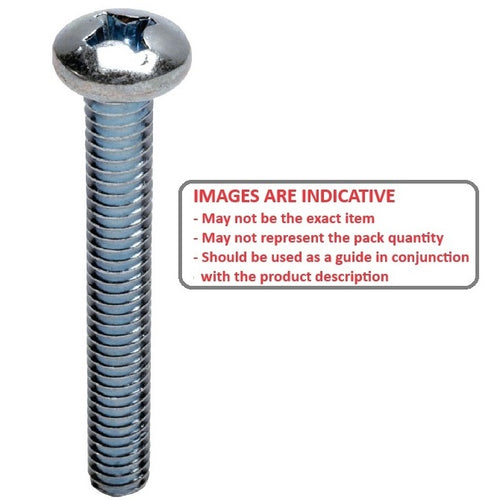

Screws - Pan Head - Phillips - SteelSteel Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M2 (2x0.4mm)
- Thread Length (L)
12
mm
(Equiv. 0.472 in.) - Material Zinc Plated Steel
- Max Head Diameter 4.0 mm
- Max Head Height 1.6 mm
- Pitch 0.400 mm
- Threads Per Inch 63.5 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92005A035
