Miniature Bearings Australia
SC020M-010-P-SL-S3 - Datasheet
MBA
Category Information

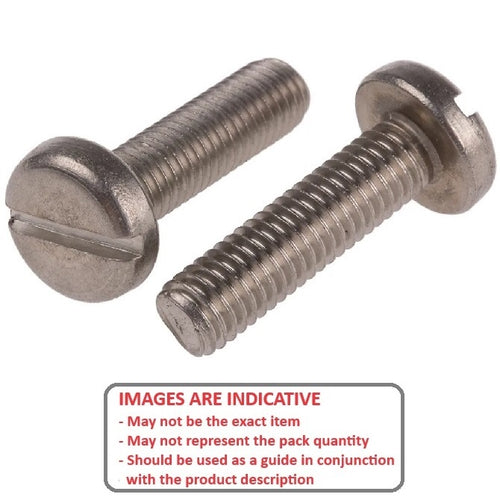

Screws - Pan Head - Slotted - 304 Stainless304 Stainless Slotted Pan Head Screws. Metric Only
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M2 (2x0.4mm)
- Thread Length (L)
10
mm
(Equiv. 0.394 in.) - Material 303 Stainless
- Max Head Diameter 4.0 mm
- Max Head Height 1.6 mm
- Pitch 0.400 mm
- Threads Per Inch 63.5 TPI
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91200A106
- Small Parts MMX-2-10P
- MD0085MXO020X010
- MMX210P
