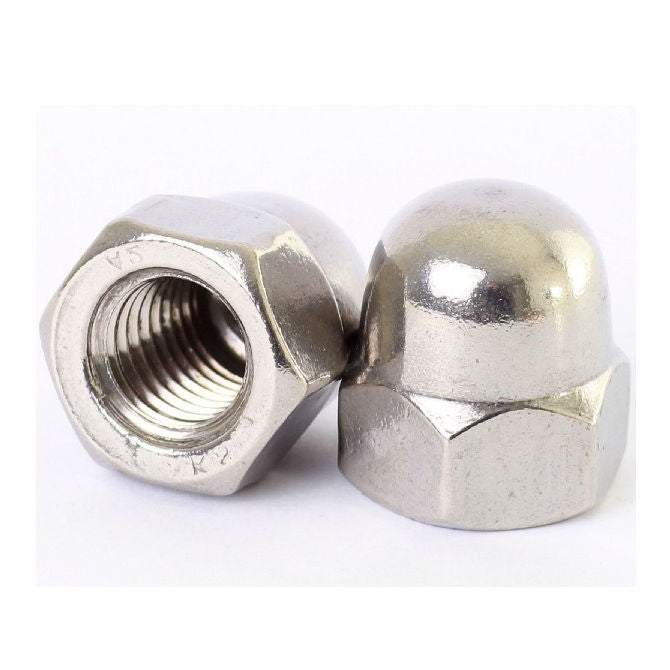

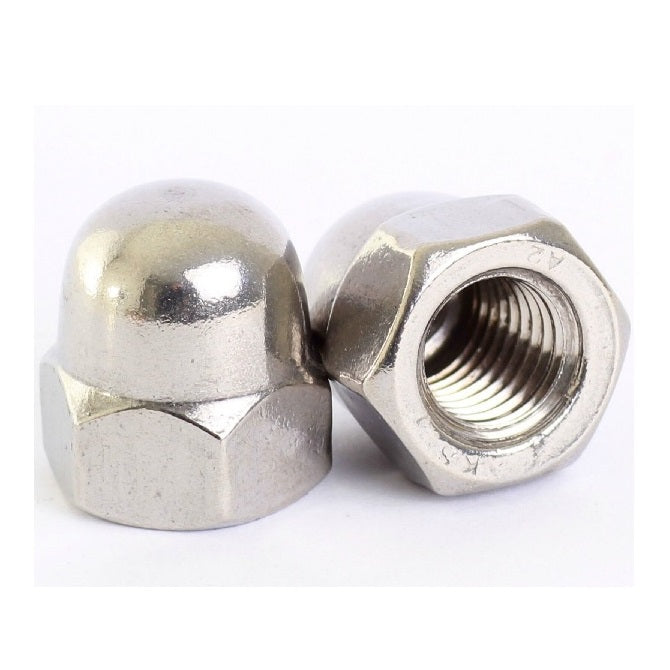

NT240M-DM-S6 - Datasheet

Brighton Best

Product Data

• Thread Size : M24 (24x3mm)
• Material 316 Stainless
• Height (B) 42 mm
  (Equiv. 1.654 in.)
• Across Flats (A) 36
• Pitch 3.000 mm
• Threads Per Inch 8.46 TPI
• Material Stainless Steel 316 (Similar to A4, 18-10)
