NT240M-BX-CZ - Datasheet

MBA

Category Information

Nuts - Hexagonal - Binx - Steel

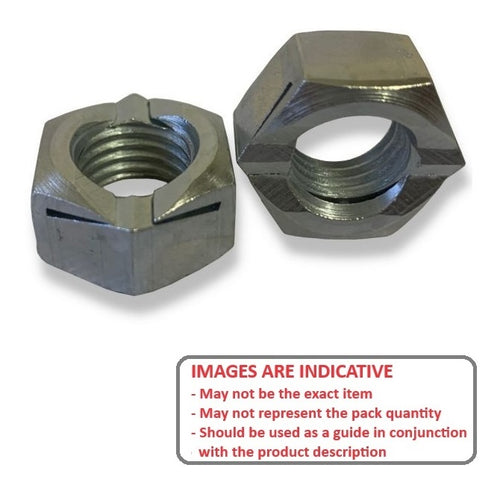

Steel Binx Hexagonal Nuts. This is the main category in this series

  • An expanded range may be available on special order. Please enquire.
  • The standard Binx's entire locking action is contained within the nut body which is no thicker than a standard full nut.
  • The ingenious design incorporates two opposing cantilever type springs which lock onto the bolt with inward and downward pressure.
  • May be removed and placed repeatedly with minimum thread wear.

Product Data

  • Thread Size : M24 (24x3mm)

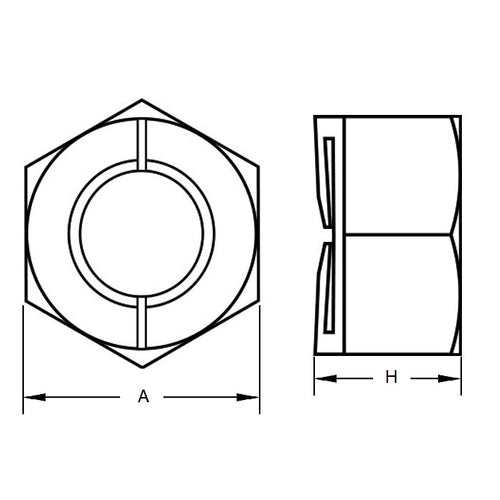

  • Thickness (H) 18.8 mm + 0.000 / - 0.005
    (Equiv. 0.74 in.)
  • Across Flats (A/F) 36.00 mm
    (Equiv. 1.417 in.)
  • Type Binx
  • Pitch 3.000 mm
  • Threads Per Inch 8.46 TPI
  • Material Zinc Plated Steel
Country of Origin: GB
