KLI-240M-330-33 - Datasheet

MBA

Category Information

Thread Repair - Inserts - Keylocking

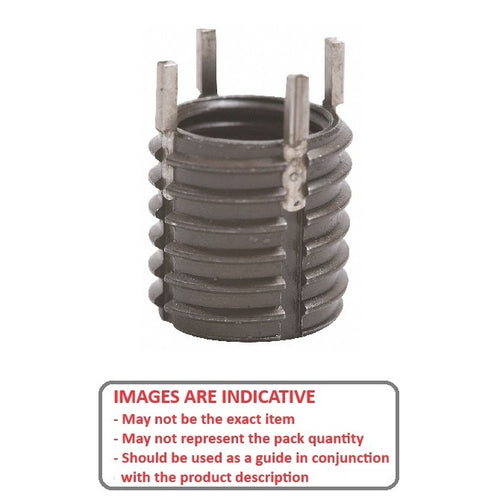

Keylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.

  • Steel or 303 Stainless Steel as indicated in the tables
  • Maximum strength and reliability.
  • Positive mechanical lock against rotation:.
  • The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
  • Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.

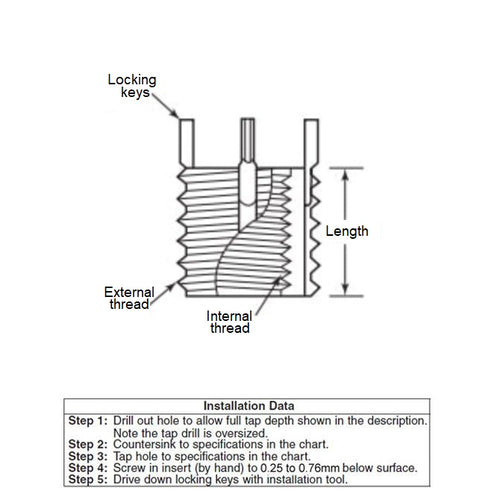

Product Data

  • Internal Thread : M24 (24x3mm)
  • External Thread M33 x 2.00
  • Length 33.000 mm
    (Equiv. 1.299 in.)
  • Tap Drill Diameter 31.00 mm
  • Countersink Diameter 33.250 mm
  • Locking Keys 4
  • Tapped Hole Depth 37.500 mm
  • Removal Drill Size 28.750 mm
  • Removal Drill Depth 6.350 mm
  • Installation Tool KLI-64775RS
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 90245A213
  • KLI65975
  • KLI-65975
