MSM-240M-150-S4RP - Datasheet
MBA
Category Information

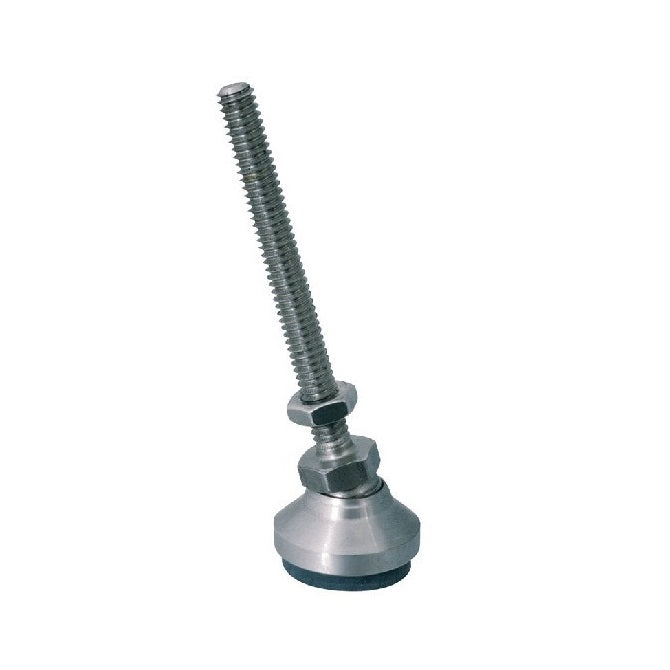

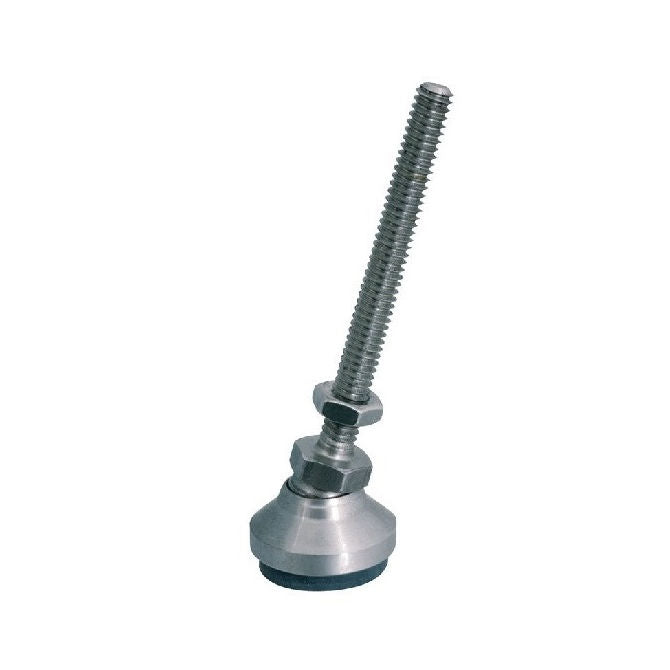

Mounts - Levelling Studded - Swivel - 303 Stainless - Rubber PaddedRubber Padded 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

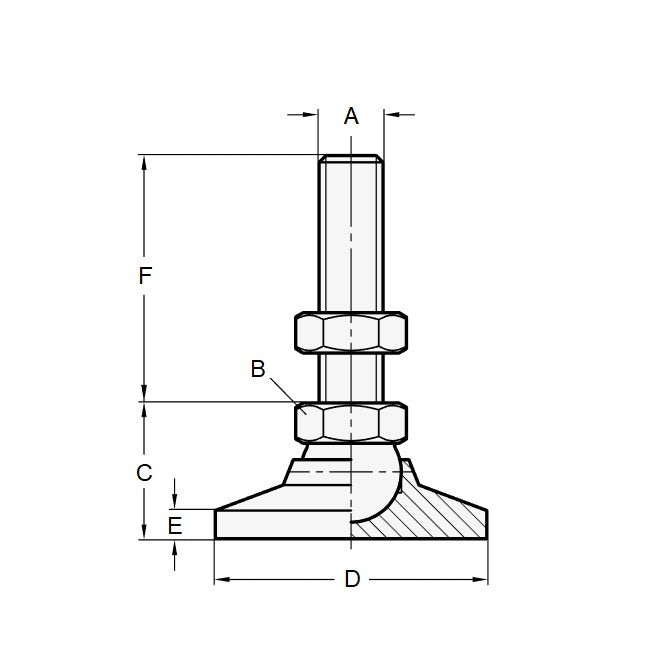

- Thread Size (A) : M24 (24x3mm)
- Base Diameter (D) 80.00 mm
- Foot Height (C) 45.00 mm
- Thread Length (F) 150.00 mm
- Base Height (E) 36.50 mm
- Overall Height 195.0 mm
- Load Rating 1000 Kg
- Pad Thickness 8.50 mm
- Pad Material Rubber
- Hex Flats (B) 36.00 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-CFJFNVS100-24-150
- Misumi® C-CFJFNVS80-24-150
- CCFJFNVS10024150
- CCFJFNVS8024150
