MLM-240M-180-ZPPH-ECO - Datasheet
ECO
Category Information
Mounts - Levelling Studded - Economy - PVC PaddedPVC Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.
Product Data

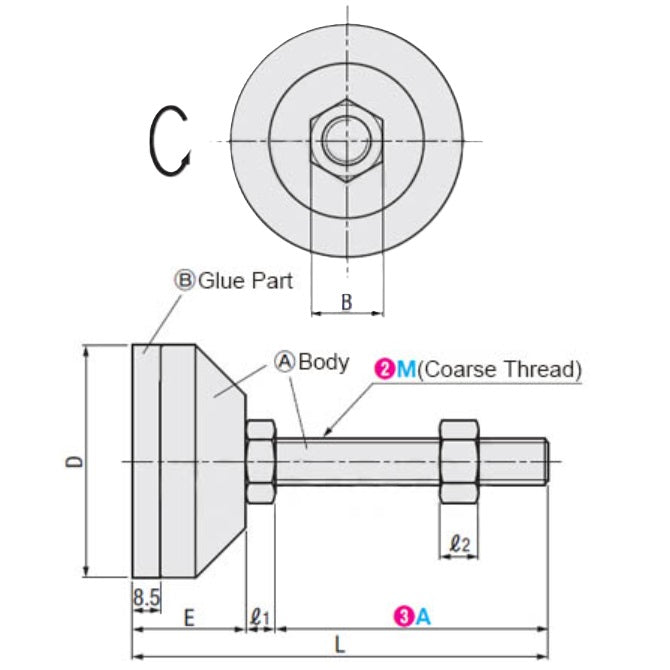

- Thread Size (A) : M24 (24x3mm)
- Base Diameter (D)
80.0
mm
(Equiv. 3.15 in.) - Foot Height (C)
45.5
mm
(Equiv. 1.791 in.) - Thread Length (F) 180.0 mm
- Base Height (E) 37.0 mm
- Overall Height 225.5 mm
- Load Rating 98.00 Kg
- Pad Thickness 9 mm
- Pad Material Polyvinyl Chloride
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CPVC80-24-180
- CCPVC8024180
